Verdant Tower
Form, Energy & Life

"The building does not consume the world.
It is the world — compressed, cycling, alive."

2.4MW

Peak BIPV output

148m

Biosphere diameter

240kW

Crown VAWT output

600res.

Food caloric capacity

80L/m²/d

Fog-net yield

0net

Carbon operational

MANIFESTO

Two towers do not make a building. They make a question.

What lives between them?

The Verdant Tower refuses the premise of the standalone object. Architecture, in this reading, does not sit on the land — it negotiates with it, borrows from it, returns to it. The earth-berm plinth anchors the towers in dark local stone; above it, the shafts rise in expressed bio-hybrid concrete panels — a material that carries structure, self-repair, and the building's own biological logic in every layer of its surface.

What hangs between them — the aquatic biosphere, the tensegrity suspension, the central void — is not a feature. It is the building's argument. Life suspended in glass, held up by mathematics, fed by the towers and feeding them in return. A closed loop made visible.

The building produces its own energy, harvests its own water from the air, grows a significant fraction of its own food, and processes its own waste. The grid connection exists as backup. The building's metabolism belongs to itself.

Form and Massing

Two monolithic tower shafts rise from a shared earth-berm plinth. The plinth reads in dark local stone — basalt or similar — continuous with the ground it emerges from. Above the berm line, the facade transitions to expressed bio-hybrid concrete panels: the Euplectella lattice surface texture visible at joints, darkening over decades as the embedded bacterial chemistry matures. The surface language draws from the same shadow-driven vocabulary as the Obama Presidential Center and Kahn's National Assembly in Dhaka — deeply carved horizontal band recesses score the facade at every third floor — but here the carved mass is the structure itself, not a cladding applied over it.

Energy Systems

The upper third of each tower's south and west faces carries custom-formed thin-film PV panels set flush within the bio-hybrid panel system — the BIPV layer integrated at the print stage rather than retrofitted. The serrated crown houses 24 embedded vertical-axis wind turbines. The elevator system captures braking energy via linear generators stored in a basement flywheel array — using the building's own vertical dimension as a battery.

Water Systems

Fog-net mesh panels at the outer tower flanks condense ambient moisture at 40–80 L/m²/day. The aquatic sphere functions as the building's primary pressurized water tower; the aquatic loop cleans water through plant and microbial communities before redistribution.

The Aquatic Biosphere

The sphere divides into two climatic zones. The upper hemisphere maintains a humid tropical atmosphere producing oxygen and edible fruits. The lower hemisphere contains a marine-freshwater transition system: coral propagation beds, kelp cultivation, tilapia and barramundi polyculture, and a shellfish filtration bank.

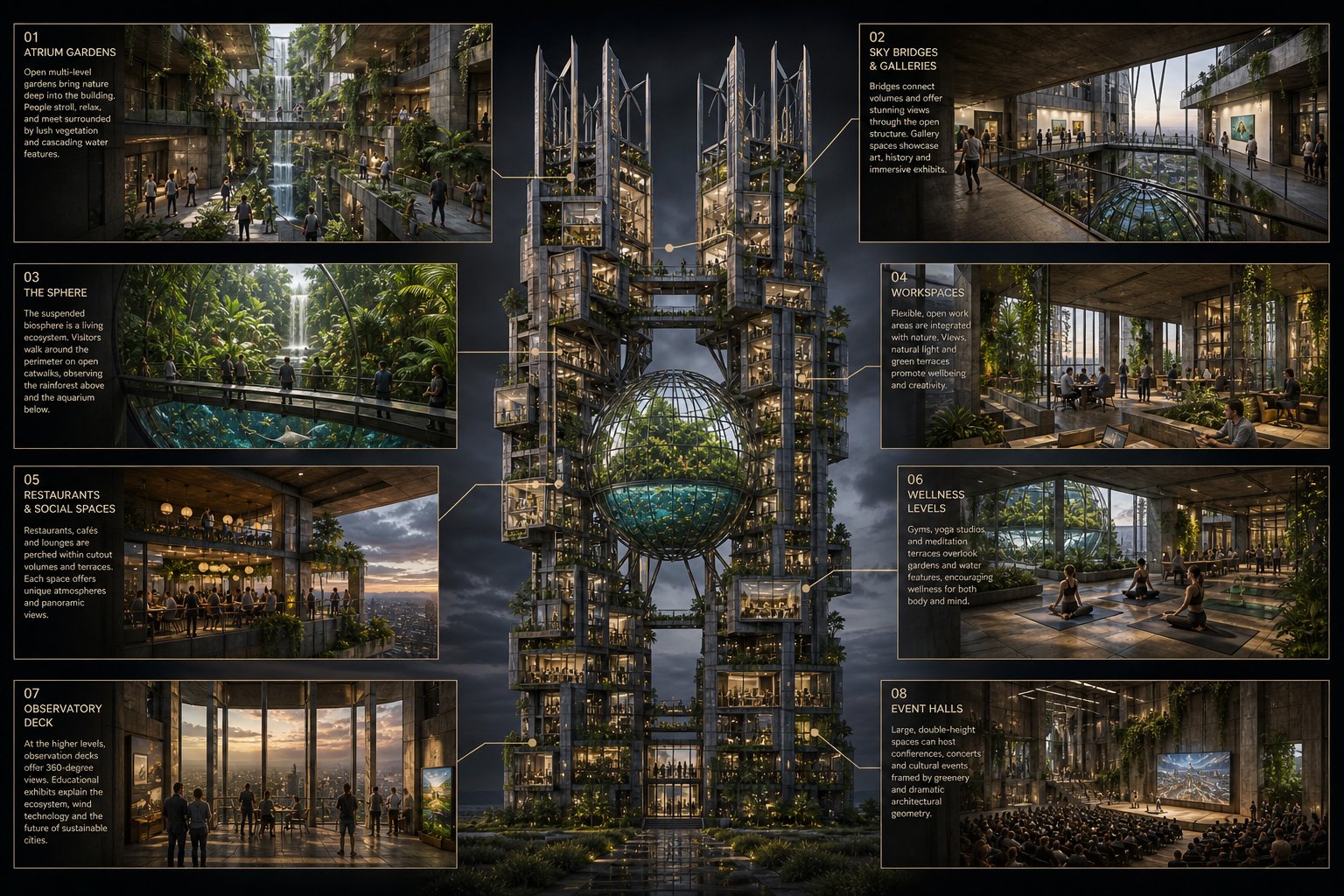

Verdant Tower program diagram — eight annotated zones — Fig. 3.3 — Program diagram. GPT-4o synthesis from schematic design phase, May 2026.

INTEGRATED SYSTEMS

Four closed loops. One building metabolism.

⚡

Energy Capture

BIPV skin integrated at panel print stage, 24 crown VAWTs, thermoelectric panel-joint strips, gravity-regenerative elevators.

💧

Water Cycle

Fog-net condensation, terrace gutter cisterns, biosphere sphere as pressurized water tower.

🌿

Food Systems

Three aeroponic terrace levels per tower face. Fish effluent feeds hydroponic channels; plant filtrate returns to aquatic system.

🌡️

Thermal Mass

Earth berms provide year-round ground-contact thermal stability. The bio-hybrid panel mass absorbs solar gain through its dark aggregate surface and releases it at night — the same thermal flywheel logic as heavy masonry, without the quarrying footprint.

How the towers get built.
Living concrete, printed by nature.

Verdant Tower's structural ambition demands a structural material that matches it. Conventional Portland cement achieves the load numbers — but at an enormous carbon cost, with no capacity to repair itself, and with no intelligence baked into its matrix. The proposed solution draws from the same biomimetic methodology behind every DragonWorx project: let organisms that already solved the problem show the way, then let AI navigate the solution space too complex for human design alone.

Portland cement clinker delivers compressive strength. Microbially Induced Calcium Carbonate Precipitation (MICP) delivers self-repair. The problem — thoroughly established in the research literature — is that the two systems actively undermine each other when combined directly. Clinker hydration drives pore solution pH above 12.8. Bacterial urease activity requires pH 8–10. Mixed together, the bacteria die and the chemistry that was meant to repair the structure never fires.

The solution does not involve choosing one over the other. It involves designing the architecture of the material so they never directly touch — separated by a pH-buffering biopolymer interlayer inspired by nacre's organic organic membrane between aragonite platelets. Each zone performs its function. The structure holds. The biology repairs. Neither compromises the other.

The geometry of this separation — and the geometry of every load-bearing zone within it — comes from three organisms that nature spent hundreds of millions of years refining. Euplectella aspergillum (the Venus' flower basket glass sponge) provides the structural lattice: a diagonal double-strut square unit cell that resists buckling from any direction and channels nutrients through its void geometry simultaneously. Nacre provides the interlayer toughening logic: a brick-and-mortar laminate that deflects, bridges, and arrests cracks through five simultaneous mechanisms. Cortical bone provides the delivery network: Haversian canal geometry, with precisely positioned channels that route bacteria, nutrients, and signaling chemistry to where they need to go.

AI-guided multi-objective optimization sets the specific geometry of each zone, the print sequence timing, and the biopolymer chemistry — solving six simultaneous constraint sets that no human designer navigates well: structural load, pH gradient, nutrient transport, crack propagation, thermal stability, and bacterial viability window.

52.5 MPa

Target compressive
strength

85–92%

Compressive strength
recovery post-crack

30+ days

Self-healing viable
window

5 layers

Printed strata per
structural unit

40 mm

Total panel depth
(assembled)

7 of 8

Performance targets
achieved at scale

BIOLOGICAL TEMPLATE 01

Euplectella aspergillum — Structural lattice

The Venus' flower basket glass sponge uses a diagonal double-strut square unit cell to resist compression, bending, and torsion simultaneously — omnidirectional resistance from a single repeated geometry. The void geometry that gives the sponge its lightness also provides the channel network for nutrient delivery to adjacent biological zones. The structural lattice in the Verdant Tower columns prints at 8mm unit cell size with 1.2mm strut diameter, achieving a void ratio of 0.38.

BIOLOGICAL TEMPLATE 02

Nacre — pH buffer and crack arrest

Nacre achieves extraordinary fracture toughness from 95% brittle aragonite through a hierarchical brick-and-mortar laminate separated by thin organic interlayers. Five simultaneous toughening mechanisms — crack deflection, nanoasperity interlocking, mineral bridges, organic energy absorption, platelet pullout — operate without any single one dominating. The biopolymer interlayer in the bio-hybrid system replicates this logic while also buffering pH from 12.8 at the clinker face to 8.9 at the bacterial channel face, and sorbing ammonia generated by ureolysis.

BIOLOGICAL TEMPLATE 03

Cortical bone — Haversian delivery network

Bone routes nutrients and cells through a precisely positioned vascular channel network — Haversian canals — while the surrounding hydroxyapatite handles load. The bacterial micro-channel layer in the bio-hybrid system replicates this with 2mm primary channels in hexagonal array, 0.4mm secondary canaliculi at 60° intervals, and 0.1mm tertiary diffusion micro-pores. Channels print pre-loaded with encapsulated Sporosarcina pasteurii spores that germinate on crack penetration, triggering MICP precipitation within 2 hours of damage.

Blueprint documentation — Gemini / DragonWorx Research Program · May 2026

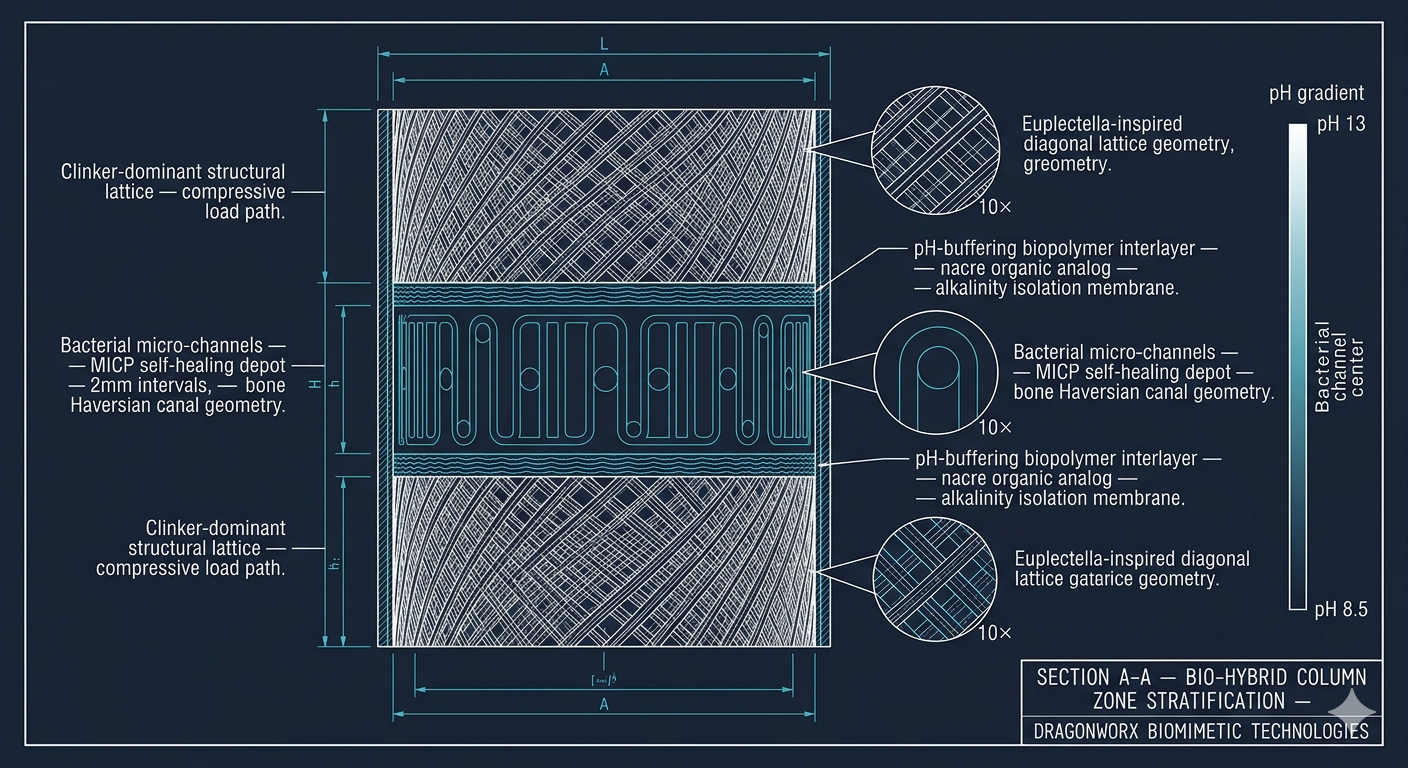

Fig. 3.6.1 · Section A-A

Bio-Hybrid Column — Zone Stratification

Cross-section through a structural column showing the five-zone printed sandwich. Euplectella diagonal lattice zones (top and bottom) carry all compressive load. Nacre-analog biopolymer interlayers buffer pH from 12.8 at clinker face to 8.9 at bacterial channel center. The bacterial micro-channel middle zone houses the Haversian delivery network and MICP self-healing depots. pH gradient bar at right shows the chemical firewall the interlayer maintains throughout the service life of the structure.

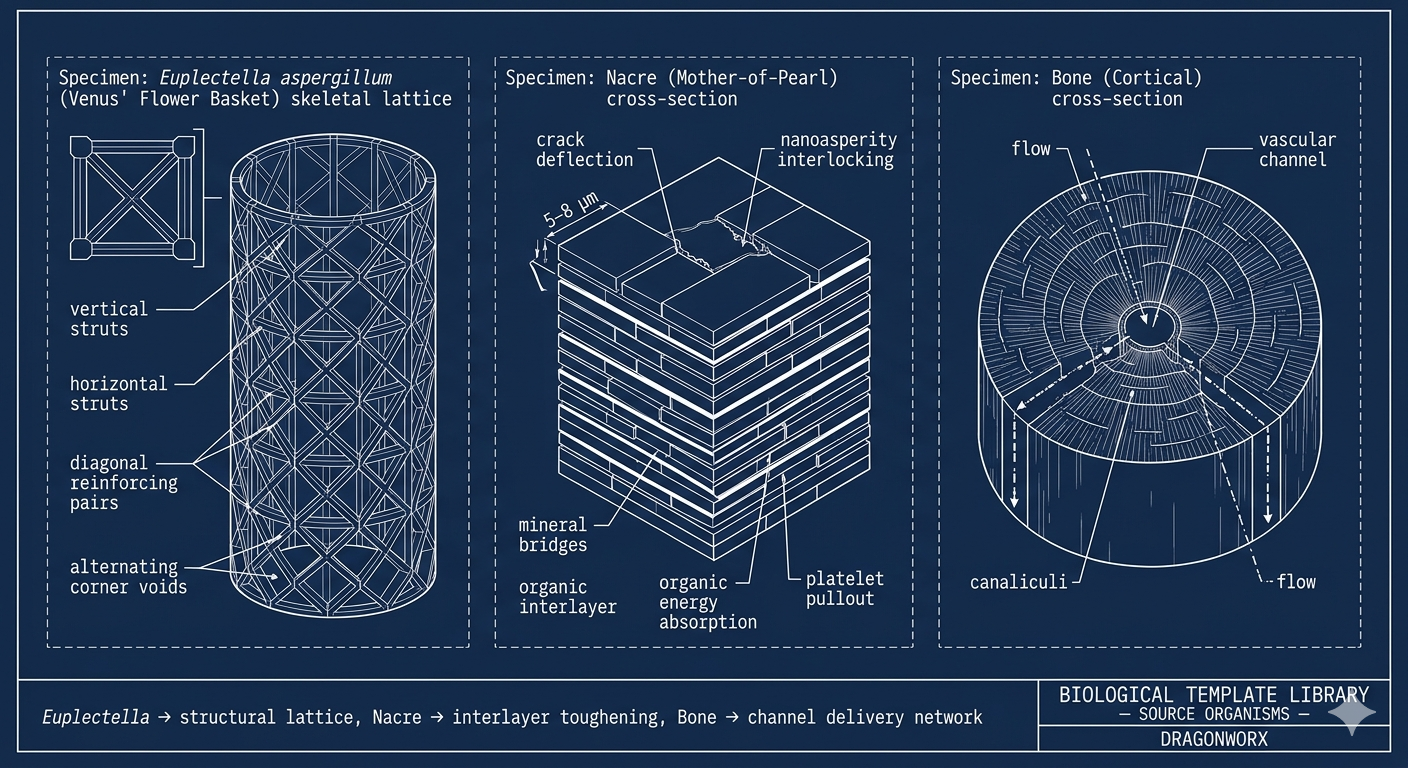

Fig. 3.6.2 · Template Library

Biological Template Library — Source Organisms

Three annotated specimen studies: Euplectella aspergillum skeletal lattice geometry with strut topology callouts; nacre brick-and-mortar laminate with five crack-arrest mechanisms labeled; cortical bone Haversian canal cross-section with nutrient flow paths. Bottom legend maps each organism to its construction function.

AI Optimization Architecture — Multi-Objective Design Engine

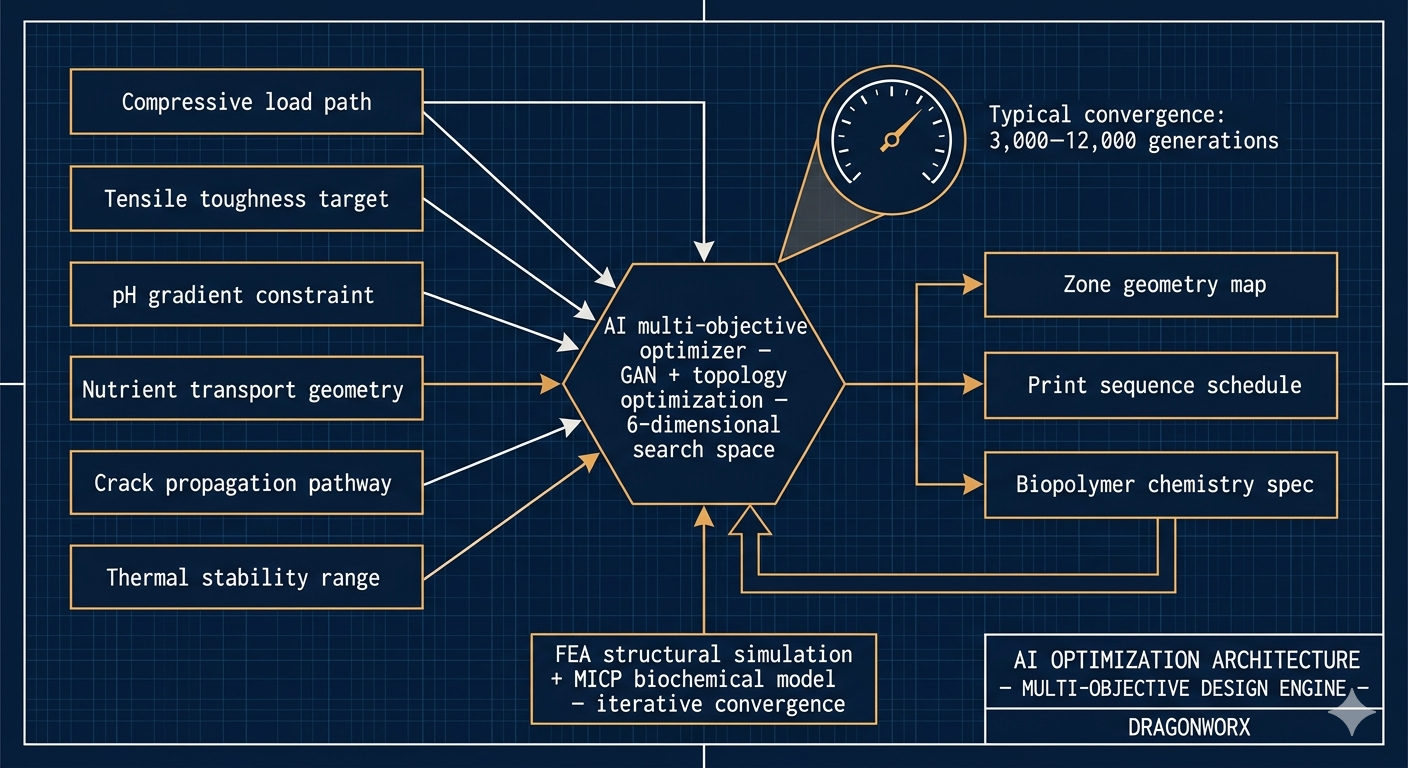

Fig. 3.6.3 · AI Design Engine

AI Optimization Architecture — Multi-Objective Engine

Six simultaneous constraint inputs — compressive load path, tensile toughness, pH gradient, nutrient transport, crack propagation, thermal stability — feed a GAN-plus-topology-optimization processor. Outputs: zone geometry map, print sequence schedule, biopolymer chemistry spec. Feedback loop via FEA structural simulation and MICP biochemical model. Typical convergence: 3,000–12,000 generations.

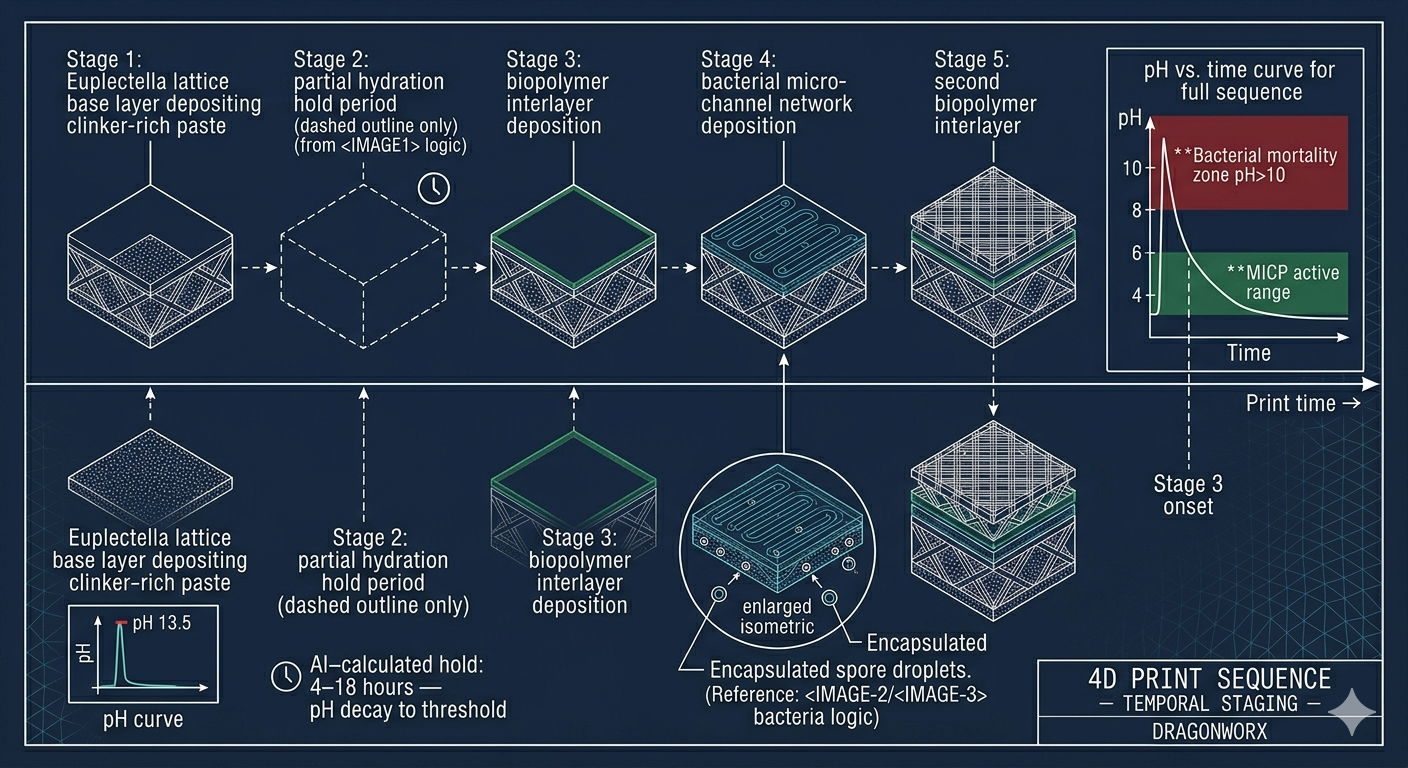

Fig. 3.6.4 · 4D Print Sequence

4D Print Sequence — Temporal Staging

The fourth dimension is time. Stage 1: Euplectella lattice base deposits clinker-rich paste (pH spike to 13.5). Stage 2: AI-calculated hold of 4–18 hours while pH decays to threshold — no deposition. Stage 3: biopolymer interlayer deposits. Stage 4: bacterial micro-channel network deposits with encapsulated spore droplets. Stage 5: second biopolymer interlayer. Stage 6 (not shown): clinker cap. pH-vs-time curve at right shows bacterial mortality zone avoided entirely by the staged sequence.

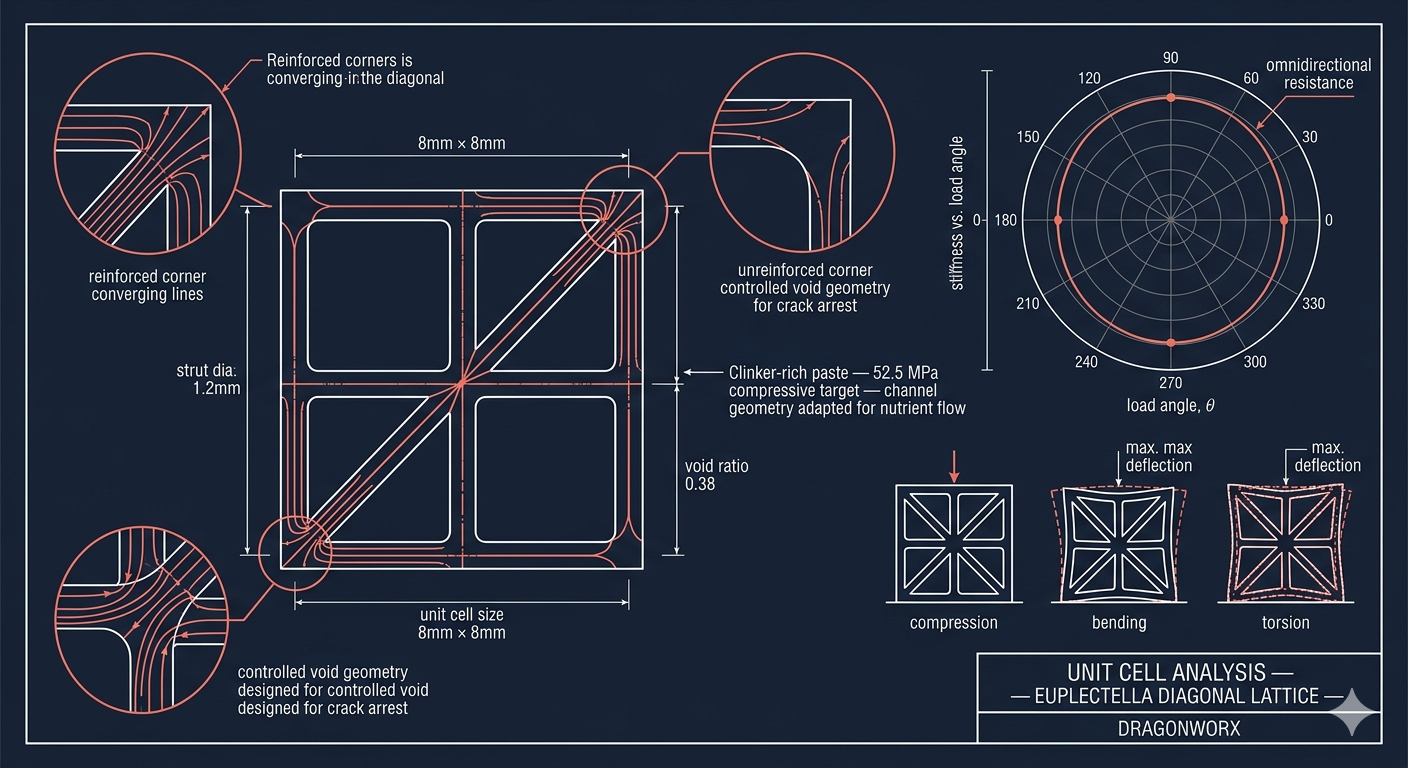

Fig. 3.6.5 · Structural Unit Cell

Unit Cell Analysis — Euplectella Diagonal Lattice

8mm × 8mm unit cell with 1.2mm strut diameter and 0.38 void ratio. Enlarged corner callouts show reinforced-corner stress convergence and unreinforced-corner controlled void for crack arrest. Polar stiffness plot confirms omnidirectional resistance. Three loading studies — compression, bending, torsion — with deformed-shape overlays.

Interlayer Detail — Nacre Analog pH Buffer and Crack Arrest

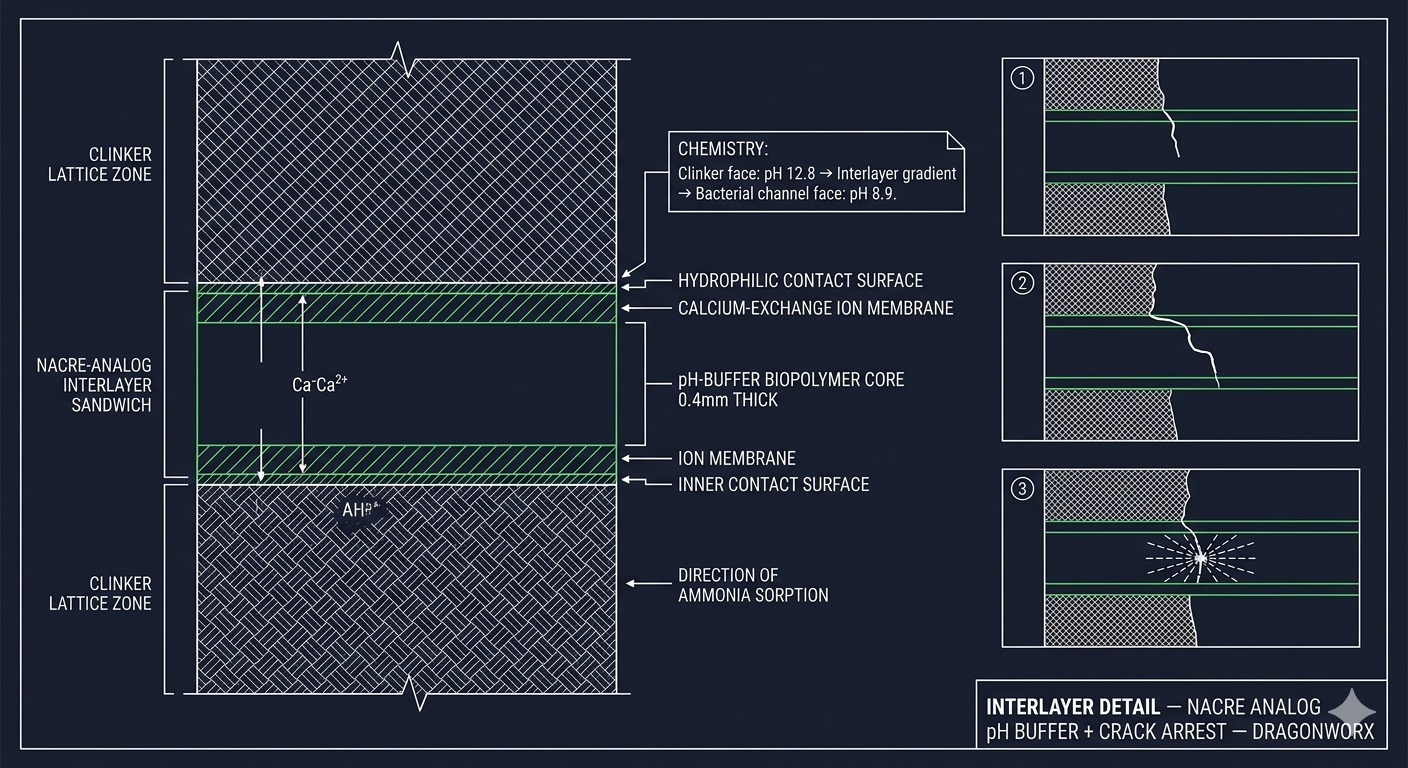

Fig. 3.6.6 · Nacre Interlayer

Interlayer Detail — pH Buffer and Crack Arrest

Five-sub-layer interlayer sandwich: hydrophilic contact surface, calcium-exchange ion membrane, 0.4mm pH-buffer biopolymer core, second ion membrane, inner contact surface. Chemistry annotation: clinker face pH 12.8 → interlayer gradient → bacterial channel face pH 8.9. Crack propagation sequence frames show deflection, lateral arrest, and energy dissipation within the biopolymer zone. Ammonia sorption direction annotated.

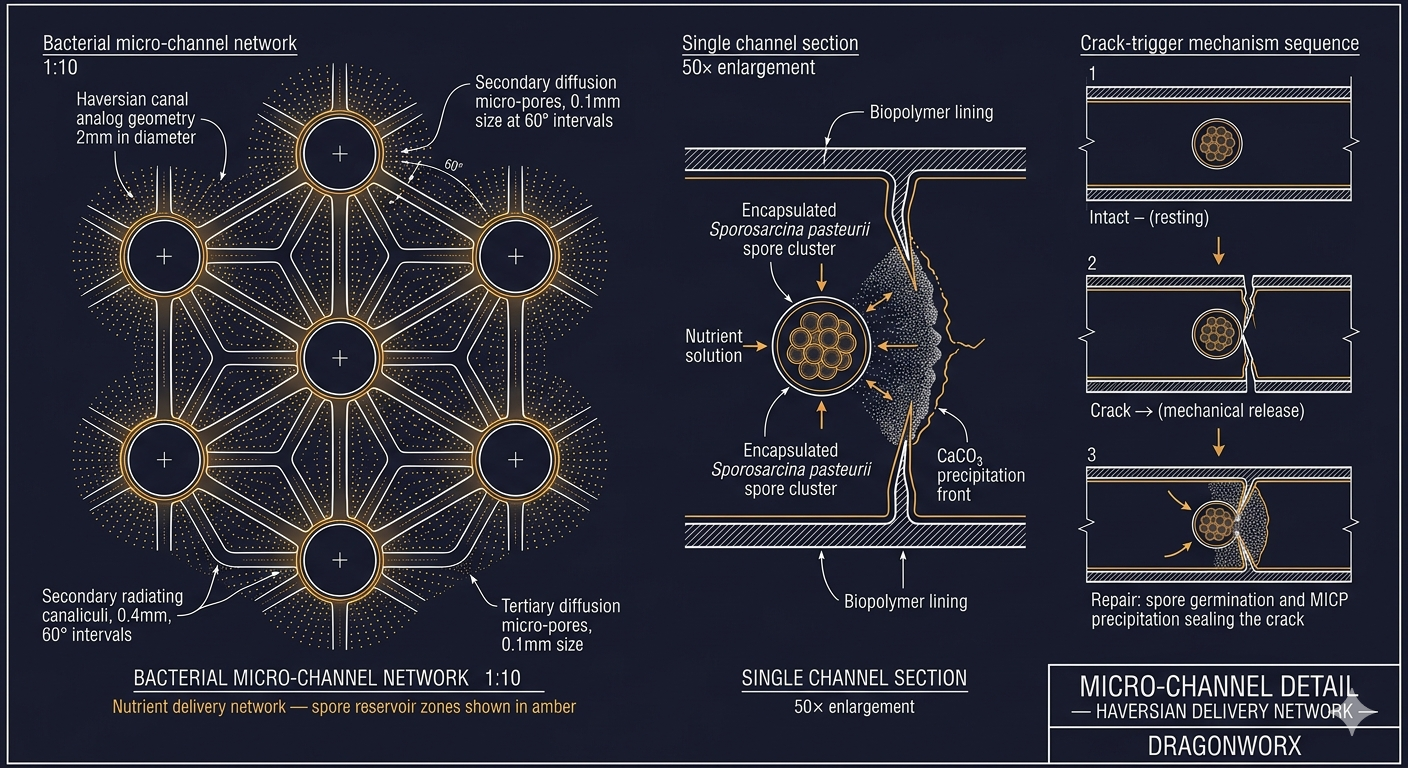

Fig. 3.6.7 · Bacterial Micro-Channels

Micro-Channel Detail — Haversian Delivery Network

Plan view of channel network at 1:10: 2mm primary channels in hexagonal array, 0.4mm secondary canaliculi at 60° intervals, 0.1mm tertiary diffusion micro-pores. Single-channel 50× section shows encapsulated Sporosarcina pasteurii spore cluster, nutrient solution, and CaCO₃ precipitation front. Crack-trigger sequence: intact → mechanical release → spore germination and MICP precipitation sealing the crack.

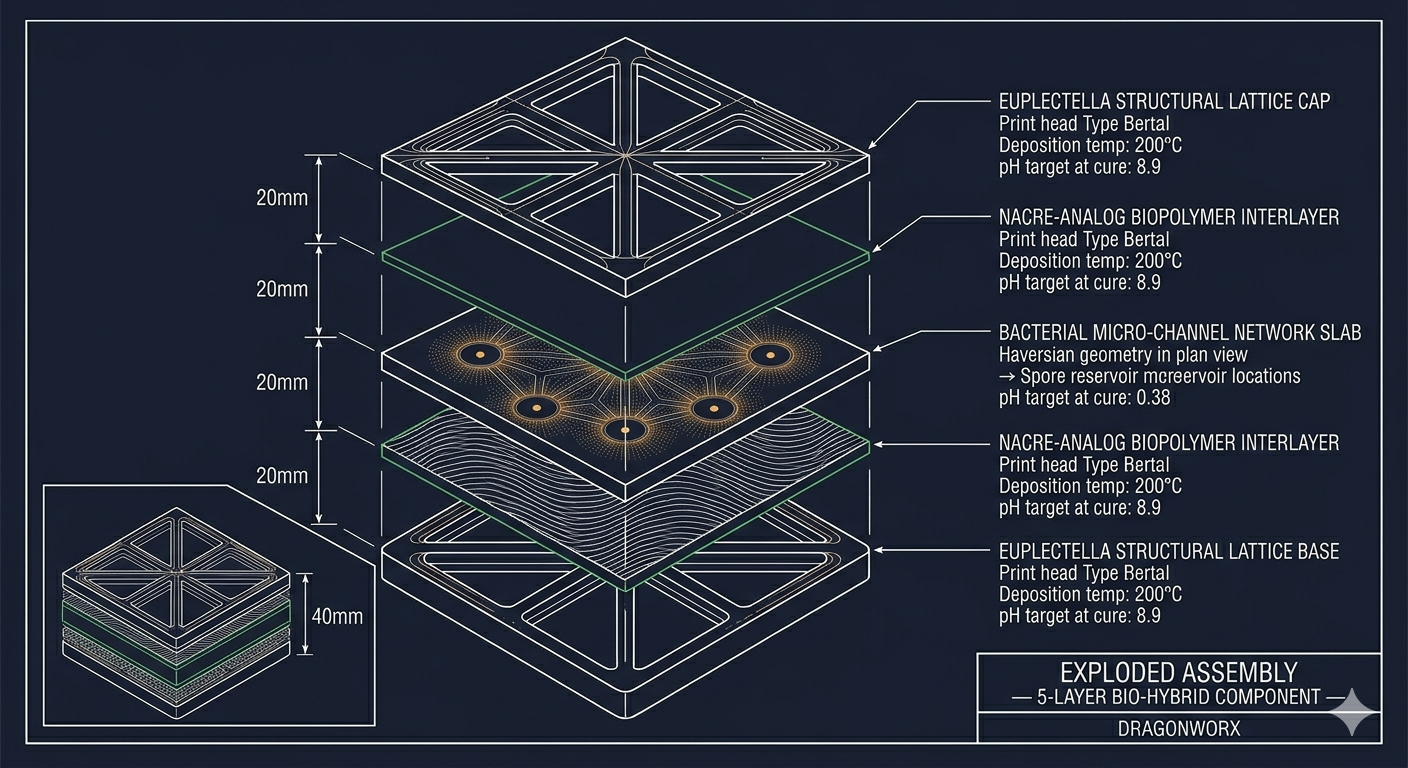

Fig. 3.6.8 · Component Assembly

Exploded Assembly — 5-Layer Bio-Hybrid Component

Five-layer component stack pulled apart with 20mm registration gaps. Bottom to top: Euplectella structural lattice base; nacre-analog biopolymer interlayer; bacterial micro-channel network slab with Haversian geometry and amber-marked spore reservoir locations; second interlayer; Euplectella structural lattice cap. Inset lower left shows finished 40mm assembled depth. Leader annotations list material, print head type, deposition temperature, and pH target for each layer.

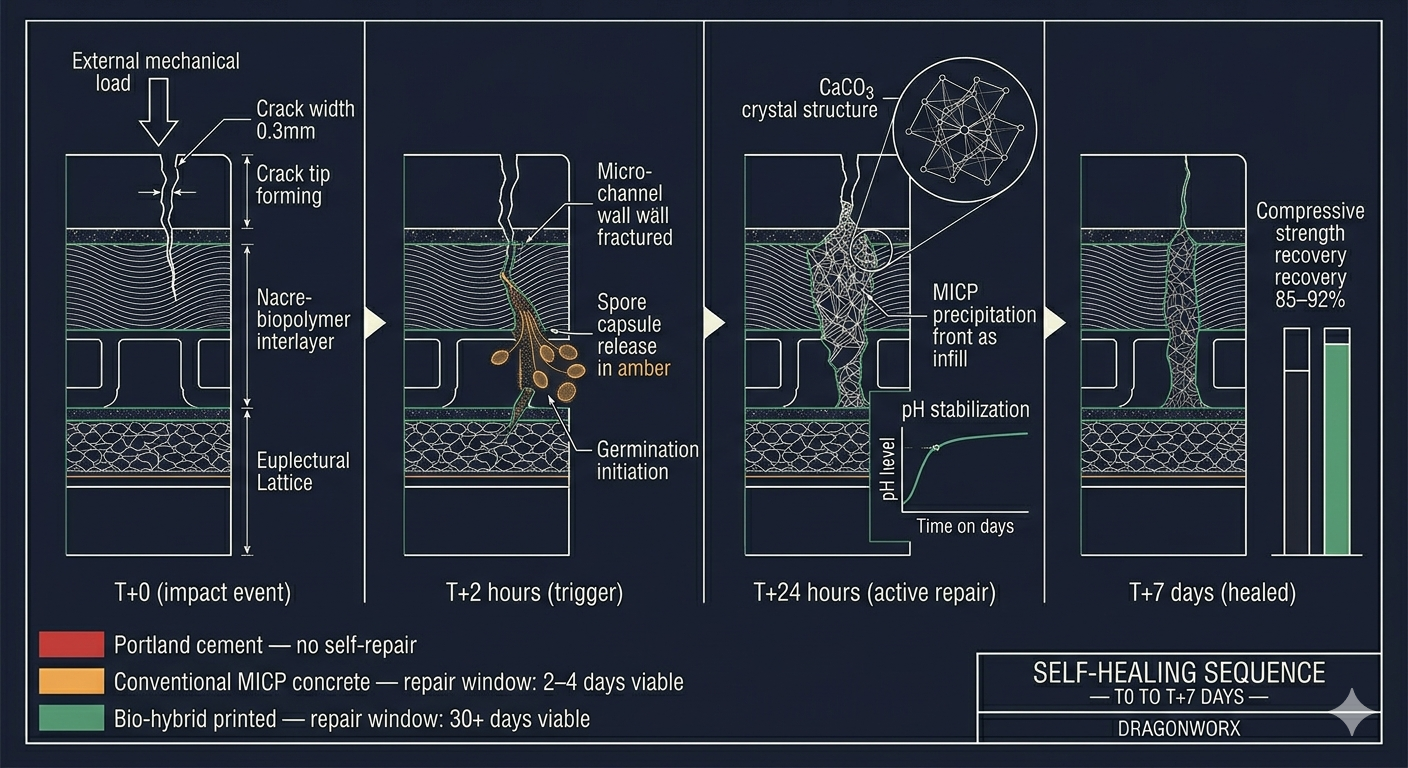

Fig. 3.6.9 · Self-Healing Sequence

Self-Healing Sequence — T+0 to T+7 Days

Four-panel time-lapse. T+0: external load, 0.3mm crack forming at clinker face, tip deflected at interlayer. T+2 hours: micro-channel wall fractured, spore capsule release, germination initiation. T+24 hours: MICP precipitation front growing as CaCO₃ crystal infill; pH stabilization curve inset. T+7 days: crack sealed, compressive strength recovery 85–92%. Comparative legend: Portland cement no self-repair; conventional MICP repair window 2–4 days viable; bio-hybrid printed repair window 30+ days viable.

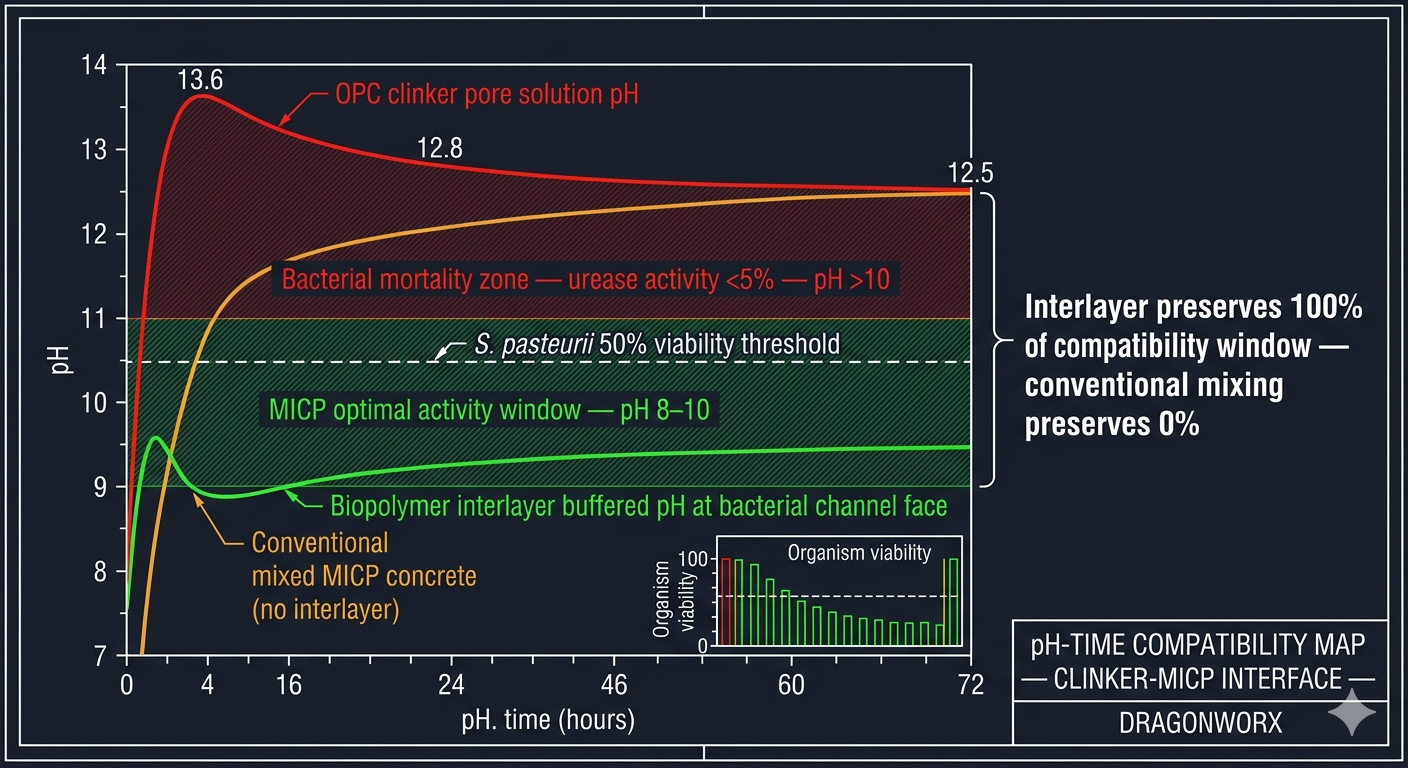

Fig. 3.6.10 · pH Compatibility

pH-Time Compatibility Map — Clinker-MICP Interface

72-hour pH evolution curves for three systems: OPC clinker pore solution (peaks 13.6 at 4 hours, asymptotes 12.5); conventional mixed MICP concrete tracking clinker throughout; biopolymer-interlayer buffered pH at bacterial channel face remaining within 8.5–9.5 throughout. Bacterial mortality zone (pH >10) and MICP optimal window (pH 8–10) shaded. Conclusion annotation: interlayer preserves 100% of compatibility window — conventional mixing preserves 0%.

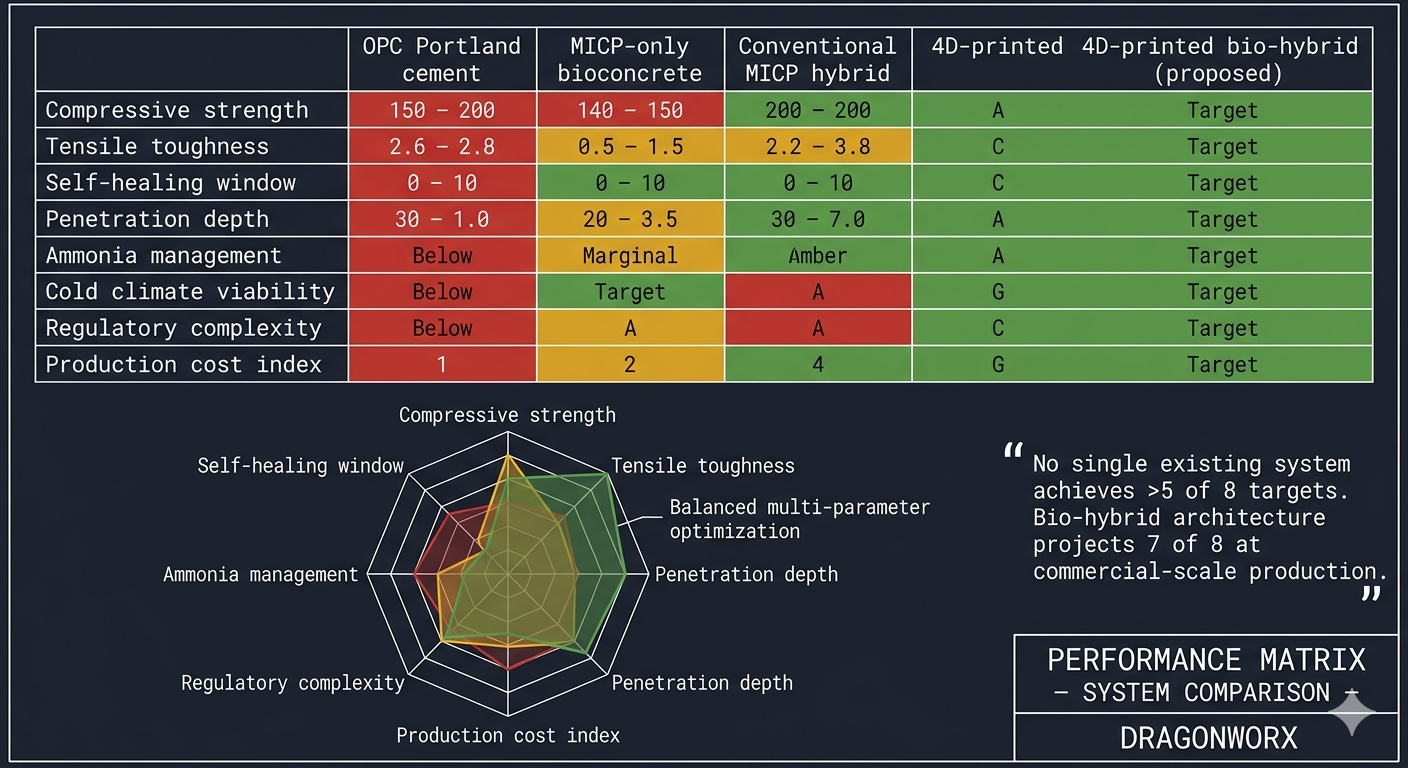

Fig. 3.6.11 · Performance Matrix

Performance Matrix — System Comparison

Eight-parameter comparison across four systems: OPC Portland cement, MICP-only bioconcrete, conventional MICP hybrid, and 4D-printed bio-hybrid (proposed). Color-coded cells: red below threshold, amber marginal, green target achieved. Radar chart overlays all four polygons — bio-hybrid achieves largest enclosed area. No single existing system achieves more than five of eight targets; bio-hybrid architecture projects seven of eight at commercial-scale production.

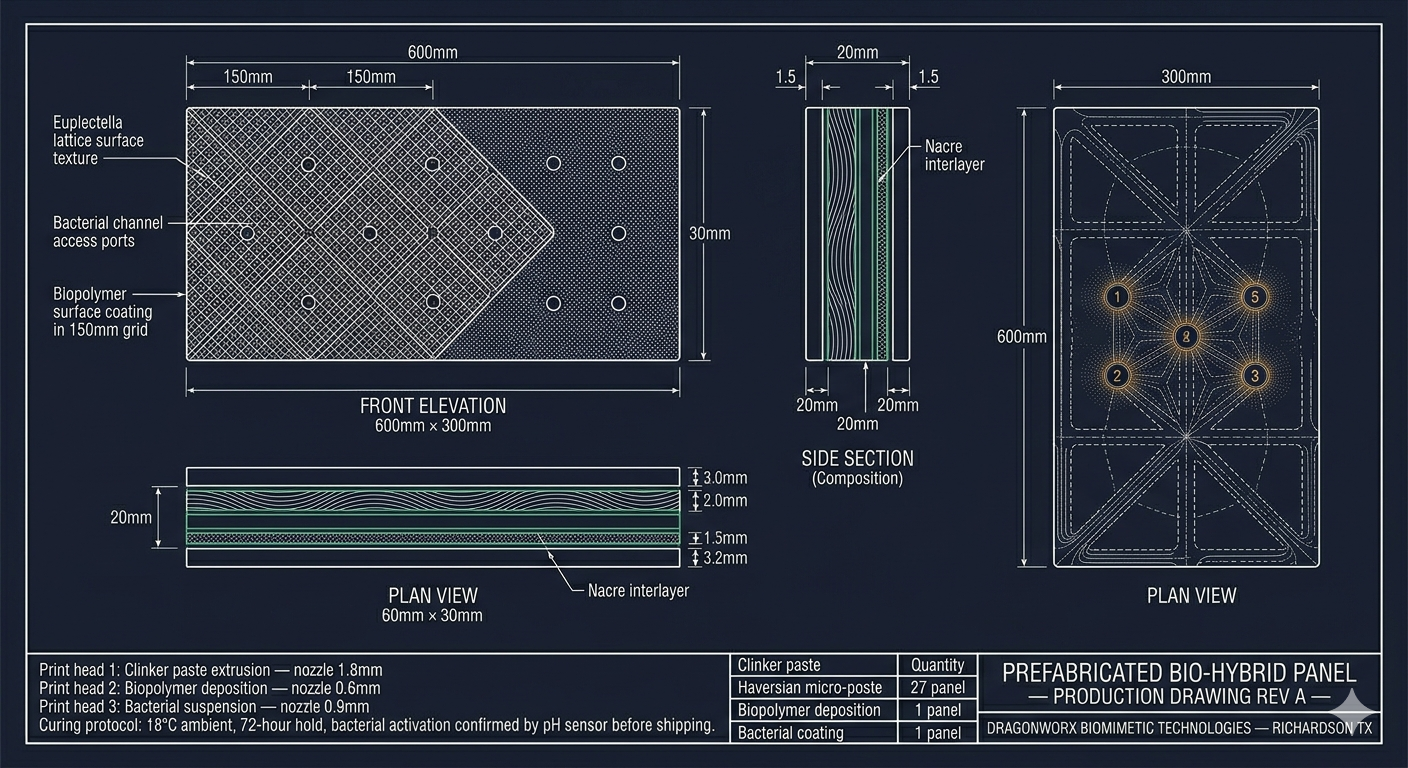

Fig. 3.6.12 · Production Drawing Rev A

Prefabricated Bio-Hybrid Panel — Production Drawing

600mm × 300mm prefabricated panel shown in front elevation, side section, and plan view. Euplectella lattice surface texture, bacterial channel access ports at 150mm grid, and biopolymer surface coating annotated. Side section shows five-layer stratification with nacre interlayer visible as bold line. Plan view shows Haversian channel network through lattice with numbered spore reservoir positions. Production notes: Print head 1 clinker paste extrusion nozzle 1.8mm; Print head 2 biopolymer deposition nozzle 0.6mm; Print head 3 bacterial suspension nozzle 0.9mm. Curing protocol: 18°C ambient, 72-hour hold, bacterial activation confirmed by pH sensor before shipping. DragonWorx Biomimetic Technologies — Richardson TX.

Blueprint documentation — Gemini Imagen 4 rendering from DragonWorx research specifications, May 2026. Research synthesis and design framework: DragonWorx Biomimetic Technologies. All drawings represent proposed research directions; structural specifications subject to engineering validation. For research collaboration enquiries: getdragons@dragonworx.bio

Three ideas the building refuses to compromise.

01

The Carved Object

Surface as material truth. The bio-hybrid panels express their own structure — Euplectella lattice texture at the joints, a surface that darkens over decades as the embedded bacterial chemistry matures. Each carved band recess deepens the shadow, reinforcing a geological mass that was grown rather than quarried.

02

The Suspended Life

The biosphere is infrastructure: water tower, oxygen producer, protein farm, and public attraction compressed into a single legible gesture between two towers. Removing it would collapse the building's metabolism.

03

The Closed Loop

Nothing leaves the building that cannot return. Energy, water, nutrients, organic matter — each completes a cycle within the envelope. The grid connection exists as a vestige, not a dependency.
